| SABRE 5000 - Handheld trace detector for explosives, chemical agents, toxic indu
|
|

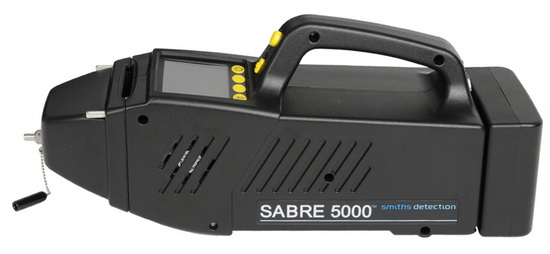

The SABRE 5000 is the smallest, lightest tri-mode handheld system available for detecting trace amounts of explosives, chemical warfare agents, toxic industrial chemicals or narcotics.
New key features for the SABRE 5000 tri-mode detector include an expanded vapor detection capability giving a wider range of substance identification, faster clear-down for better throughput and built-in troubleshooting for an improved user experience. These new attributes, combined with the award-winning design and performance of the earlier SABRE 4000, provide a key tool in protecting the world''s critical infrastructures, ports and borders, transportation systems and military bases.
Using Smiths Detection''s proven Ion Mobility Spectrometry (IMS) technology the SABRE 5000 is programmed to detect and identify over 40 threat substances in approximately 20 seconds. Threats such as common peroxide-based, volatile and unstable chemicals often used to construct Improvised Explosive Devices (IED), and ammonium nitrate commonly used in home-made explosives.
Particle and Vapor Trace Detection
The versatile SABRE 5000 is capable of analyzing either trace particle or vapor samples, expanding the range of threats the system can detect. The operator can select
the best analysis method for the suspected threat to yield the most accurate analysis results. Switching between sampling modes takes only seconds.
Auto-Switching Vapor (ASV) Modes
The ASV-Explosives mode offers an optimized detection in both negative and positive mode for an increased range of explosives detection fro m single sample. To detect CWA/TIC substances, the ASV-CWA/TIC mode offers Emergency Responders flexibility to continuously sample vapor without the need for switching between positive and negative modes. When the system is used in a fixed location the display screen can easily be rotated 180o for easy viewing.
Specifications
Technology Ion Mobility Spectrometry (IMS)
Radiation source 63Ni, sealed 15 mCi
Sample collection Trace particle and vapor
Dimensions 36.3 x 11 x 13cm (14.5 x 4 x 4.5in)
Explosives detected RDX, PETN, TNT, Semtex, TATP, NG, Ammonium Nitrate, H2O2 and others
Drugs detected Cocaine, Heroin, THC, Methamphetamine and others
Toxic industrial chemicals detected Hydrogen Cyanide (HCN), Phosgene, SO, NH and others
Chemical warfare agents detected Nerve and blister agents such as Tabun, Sarin, Soman, Cyclosarin, Agent VX and Vx
Display 8.89cm (3.5in) TFT color display
False alarm rate Less than 1%
Input voltage 12VDC, 110 VAC / 220 VAC, 50-60 Hz
Alarm type Audio and visual, with substance identification
Ready time Under 15 minutes
Sensitivity Particle: low nanogram range; Vapor: low parts per million range
Weight 3.2 kg (7lbs.) with the 4 hour battery
Operating modes Explosives, Narcotics, Chemical warfare agents/Toxic industrial chemicals
Analysis time Detection in 10 seconds, complete analysis in 20 seconds
Operating temperature range 0oC to +40oC (32oF to 104oF)
Operating humidity 0 to 95% non-condensing |
|
|
|
|
