| FIDIA C20 NC
|
|
C20 - The top NC for more sophisticated applications with monitor TFT 19"

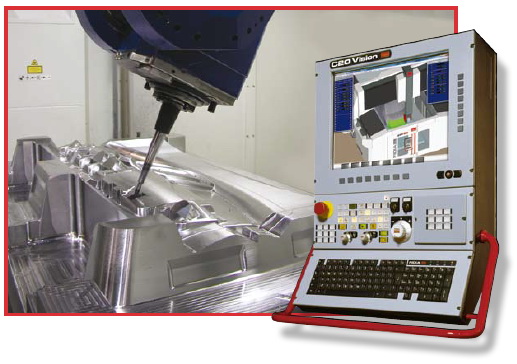

FIDIA C20 is the most complete solution for hi-end application. It''s made by an LCD monitor 19", keyboard, push button panel and a CNC rack to be placed in the electrical cabinet. Up to 32 axis can be managed, 9 of them interpolated simultaneously, different digital and analog drives interfaces are available. RTCP option for bi-rotative heads and roto tilting tables that ca be used simultaneously complete the offer.
The C Class numerical control line can be installed on a wide range of machine tools: from traditional milling and boring machines to machining centres, including the most complex high speed milling systems.
The C Class products offers advanced features of functionality and flexibility to manage high levels of automation, from the simple pallet changer to the more complex FMS systems.
A wide range of hardware and software solutions, combined with a linear and compact design, ensure a high level performances for the milling of moulds and dies, models, aeronautical and general mechanical components.
The architecture with two separate processors, one for the operator interface and one for the real time, enables high milling performance in terms of quality and speed to be achieved. Moreover, thanks to Windows XP and the hardware solutions integrated on the C20, it is possible to install the innovative ViMill Fidia software or other applications for programming, measuring, monitoring etc.

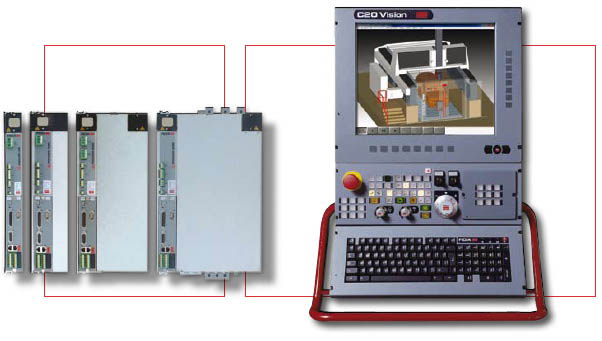

To use at their best the NC features, Fidia also provides its XPOWER digital drives. A wide range of power modules can drive all the most common motors installed on machines tools: brushless, linear and torque motors, synchronous and asynchronous spindles. This means that Fidia provides all the electronic parts of the machine and guarantees its performances, functionalities and service in every part of the world. The expertise and professional competence of Fidia Service Dept. integrated in the supply ensure the investment's validity in time. |
|
