Parking System
Model: PSH5
|
|
Working Principle

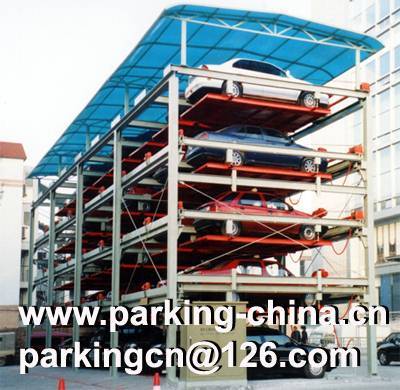

The equipment is designed with 5 levels with multi-rows and each level is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first level and all the spaces can slide automatically except the spaces in the top level. When a car needs to park or release, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.
Characteristics of the System
1. Low area coverage and high usage rate of space. The levels and rows may be designed according to the customers????requirements.
2. Outer packing types may be designed as full packing, half packing, simple packing or nude packing according to the customers????requirements.
3. This type of parking system has low cost and low maintenance cost.
4. It operates steadily without noise and with fast operating speed and short parking and releasing time.
5. Multi-channels safety protection and series of safety protection devices for anti-fall, anti-crashing and anti-overloading.
Adapted places
Open places in plaza and between buildings.
Parameters
Mode of drive Hydraulic Motor
Size of car (L?W?H) 5000mm?1850mm?1550mm
Weight of car 2000kg
Lifting motor power 3kw 2.2kw
Lifting speed 12-18m/min
Sliding motor power 0.2kw
Sliding speed 8m/min
Electricity AC380V,50Hz, 3 phases 5 wires system
Safeguard devices Hydraulic whole protection and anti-fall frame Anti-fall frame (our patent)
Warning devices Sound, light, electricity
Malfunction indication Fault diagnosis by computer, liquid crystal display
Frame composition Columns and beams are made of H type steel, Channel steel, angle steel and square pipes;
Parts appearance treatment Galvanized treatment and high-grade anti-corrosion paint
Modes of operation LCD/ IC card/Manual
Controller PLC
Way of parking in and out Forwarding, reversing into the space
|
|
