Single-screw extruder

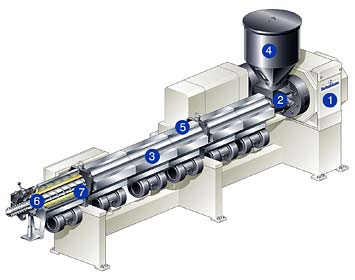

Single-screw extruder: Modules

1 Drive unit
2 Barrel inlet
3 Temperature control
4 Feed hopper and dosing unit
5 Vacuum venting
6 Barrel
7 Screws

Reifenhäuser extruders are the starting point of high-quality products and reflect technical superiority and a great versatility.

The extruder barrels are manufactured from extremely hard-wearing, corrosion-resistant bimetallic materials. Screw design and screw geometry are developed and matched to the specific raw material and product requirements. The manufacture of screws and barrels is undertaken on ultra-modern computer-controlled central turning and milling units. An extensive quality assurance program ensures screws and barrels are supplied to a consistent high quality.

Reifenhäuser has divided its extruder range into two series:

RH - with high-level plasticizing unit
RT - with low-level plasticizing unit

In addition, a new drive concept has been developed with the special Reitorque gearless drive technology.
