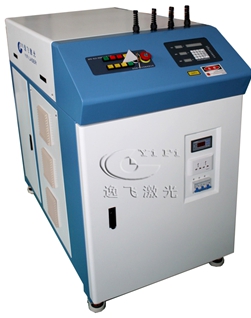

Fiber transmission lamp pumped laser welding machine
Model: EFE-LS-450
|
|
Application:
They are widely used in production of optical communications devices, power battery, household appliance, kitchen utensils,auto parts and other precision parts ,especially for spot welding for photoelectric device ,sensor ,and electronic components.
Technical Parameters:
Model EFE-LS-260 EFE-LS-350 EFE-LS-450 EFE-LS-550
Wavelength 1064nm
Pulse width 0.3ms~20ms
Pulse frequency 0.1~150Hz
Rated output power 260W 350W 450W 550W
Max output power 300W 480W 570W 670W
Max single pulse energy 70J 90J 100J 110J
Beam divergence angle <=8mrad
Facular Diameter >=0.3mm
stability of energy <=±1.5% current feedback
<=±1% power feedback
Number of fiber output 1-6 beam path optional
Laser split method Time split or energy split
Dimension (L*W*H) 700mm x 1400mm x 1200mm
Continuous working hours 24h |
|
