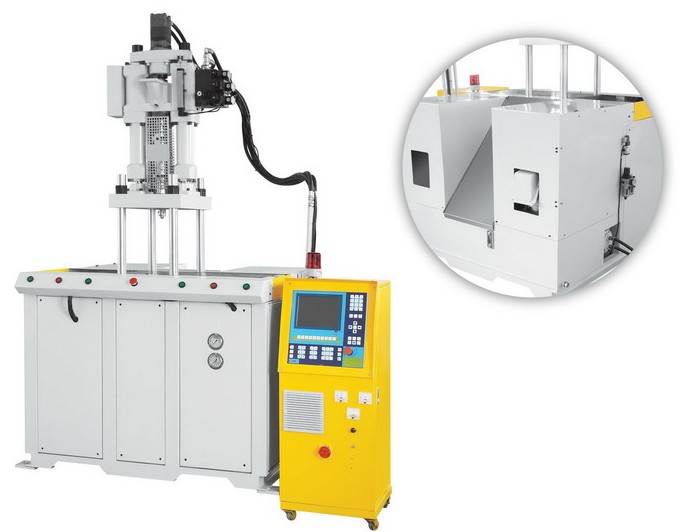

vertical double injection machine
Model: CV-DM
|
|
Vertical mode-locking and vertical injection machine. Covering a small area, easy to use, and no displacement when work piece is embedded. It is available for re-embedding small-and medium work piece.
Dual-cylinder injection device. With high injection pressure and a fast injection speed, the facility is perhaps the best choice for thin-walled past molding.
Direct Pressure Mode-Locking Device .Balanced mode-locking pressure and accurate mold matching at low pressure, it is capable of extending die life and it is expected to get accurate molding.`
It is available, according to the requirements of the characteristics of embedded part and capacity, to arrange in Paris with signal slide machine (the D series), Dual Slide Machine (the DM series), or Turntable-type Device (the R series).Such a combination enables you to get maximum output but minimum investment.
Scalable- program that is capable of communication between automation embedding device and drawing out device and is fully automated.
Patented technology of pressure increasing is available to unite using with tonnage mold-locking device.
CV-DM double plate:
One upper mould and two lower moulds,two lower moulds in stakeboarding around the turn of the next slide,for large batches or species than a single,non-tail line of products;
Advantages:the equivalent of two sets standards for machine capacity.Disadvantages:Mold investment is large (one upper mold and two lower moulds),the workload of a large single operation. Security: mole -locking zones are on the back mounted fenders,left and right station configuration row-style safety light curtain.Electricity and hydraulic pressure protection devices. |
|
