| MC6470 6-Axis eCompass
|
|
MC6470 6-Axis eCompass Overview
The MC6470 is a 6-axis eCompass that consists of a 3-axis linear accelerometer and a 3-axis magnetic field sensor, both with an I2C digital interface, in a single 2x2mm package. By combining a high-precision magnetic sensor with a low-noise single-chip MEMS accelerometer, the MC6470 enables industry-leading, tilt-compensated compass directional accuracy of one degree or less, with appropriate attention to magnetic system design. The MC6470 also incorporates the mCube eMotion™ software which eases integration of compass functionality into the end product.
The MC6470 is ideal for applications needing to take advantage of high-precision directional pointing include map orientation, virtual reality data overlay, enhanced navigation, and gyroscope replacement.
FEATURES
Single-package high performance eCompass
o 3-axis magnetometer and 3-axis accelerometer
o Single I2C interface to 400 kHz
Magnetometer
o High performance magnetic sensor with 0.15µT resolution
o 0.35uT Noise
o 15-bit resolution
o Broad field range up to ±2.4mT
o Programmable output data rate from 0.5 to 100 Hz
Accelerometer
o ±2,4,8,16g full-scale acceleration range
o 14-bit resolution

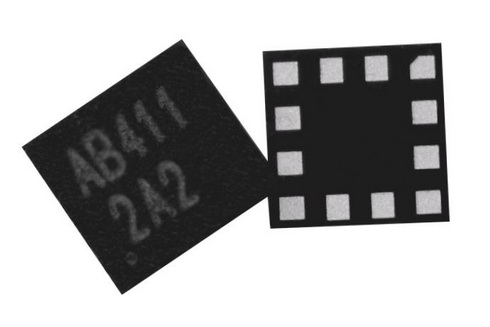

2 x 2 x 0.95 mm 12-pin package |
|
