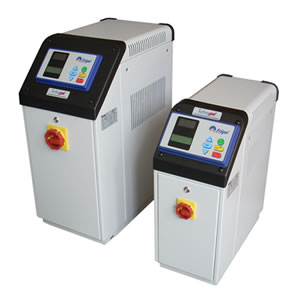

| THERMOGEL TDM-TDD - High Precision Temperature Controllers
|
|
??orking fluid: Water ??orking temperature up to max.: 90?C
??odels: Single zone (M) Double zone (D)
??onfiguration: Direct cooling, heating with electric heaters
??pplications: Injection moulding, blow moulding, extrusion.
----------------------------------------------------------------------------
ADVANTAGES:
??igh flow rate (?T = 2?C)
??igh Cooling capacity
??igh product precision
??inimum running costs
??imple and safe use
??aximum repeatability and process efficiency
----------------------------------------------------------------------------------------------
SPECIFICATIONS
CONTROL PANEL
Interface is easy and simple to use.
The Display shows the temperature level in big types and there is a wide alphanumeric operating screen.
MICROPROCESSOR
Monitoring of several parameters (operating pressure and temperature). Temperature control with precision of ?0,3?C, The temperature variation is tune-up following a proportional-integral logic.
Permanent digital read-out of the process water temperature and pressure. Messages are shown in the selected language among the five available.
CONTROL AND ELECTRICAL CIRCUIT
Electrical panel EN 60204/1, IP 55 certified with shut-off switch .
Procedures are completely automatic for loading and unloading mould circuit.
Main alarms: no flow, high and low pressure in the circuit, short circuit or disconnection of any probe, temperature warning for prolonged deviation from the set-point. Acoustic alarm, prearranged optic alarm, which can be also remote-installed.
INTERFACEABILITY
Serial protocol for production machines of the most famous trademarks. Signal retransmission and remote-set analogue signals.
HYDRAULIC CIRCUIT
High-performance stainless steel pumps, with special seal and tropicalized motor (up to +60?C).
Pressure adjustment by-pass device. Manual or automatic loading. A kit for the automatic draining of the unit circuit is available.
The internal hydraulic circuit consists of 100% of stainless materials so to ensure maximum life.
Safety valve.

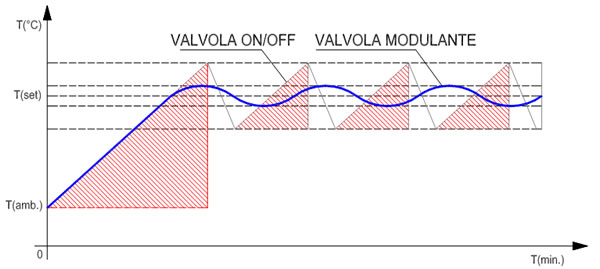

Temperature control system consisting of a modulating adjusting valve: precision and energy saving.
FRAME
Made of steel painted with epoxy powder, removable panels, installation on rotating wheels.
AVAILABLE RANGE
Heating power is 6 and 12kW by means of Incoloy? low surface load heating elements.
|
|
