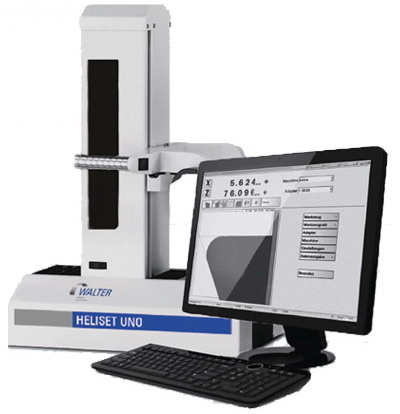

| Heliset - Manual tool measurement and pre-adjustment
|
|
The Heliset Uno enables quick and precise external pre-adjustment and control measurements of tools and grinding wheels directly in production. The image processing software with extensive measuring functions and the Laser-Edge-Finder ensure tool precision and precisely adjusted tools.
Travel/gauge length, X-axis: 115 mm
Travel /gauge length, Z-axis: 370 mm ?230 mm
ISO 50 setting arbor
Repeatability precision: 4?m
Weight 65 kg - grey cast iron bed
Measuring window 4.5 mm X 4.5 mm
19"" touch screen
CMOS digital camera with telecentric lens
Supported by USB mass storage device
Software
Microvision II IT with 33 times magnification
Connection to external tool data management
Extensive standard modules for all important measuring tasks
Edge-Finder for quick focusing on tool cutting edges
Automatic cutting edge detection thanks to contour analysis |
|
|
|
|
