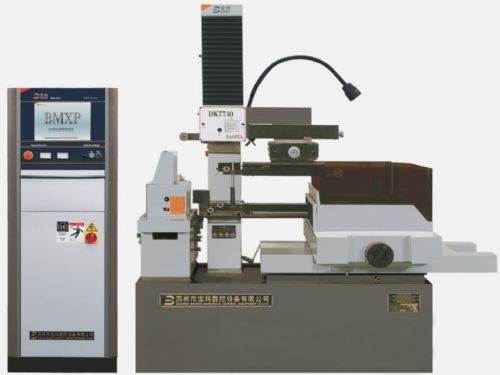

CNC Wire Cut EDM DK7740
Model: DK7740F

CNC WIRE CUT EDM DK7740D Unit DK7740D
Worktable size (L x W) mm 500 x 785
Table travel(X x Y) mm 400 x 500
Max. workpiece thickness mm 500
Max. taper angle/plate thickness degree/mm •0•100
Max. machining speed mm•min 150
Precision Octagon mm <=0.015
taper mm <=0.1
Max. working current A 6
Roughness, three cutting ?m <=1.5
Wire diameter mm 0.15~0.2
Wire travelling speed m/min 5~11
Load of table Kg 500
Working solution working solution BM-2/BM-4 or Saponification Liquid
Working reservoir capacity L 56
Power supply 3N-380V/50Hz
Power consumption KVA 3
Wire guide frame Adjustable
Machine dimensions(L x W x H) mm 1450 x 1000 x 1550
Package dimensions(L x W x H) mm 1800 x 1400 x 1800
Machine weight Kg 2000
Controller type BMW-2009
