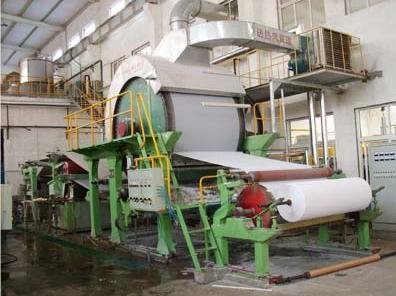

| 1575Mm Complete Set Toilet Paper Making Line And Toilet Paper Machine
|
|
Product Specifications /Features
Technical Data:
Raw material:wood pulpboard,recycled paper
Output paper: high and medium grade toilet paper
Weight: 13-40g/m2
Net paper width: 1575mm
Wire width: 1950mm
Capacity : 4t/d
Speed : 80 - 150m/min
Rail gauge: 2400mm
Design type: Box type,Back - stirring type
Design Standards: CNS Export equipment
Main structure:
1. cylinder part: ø1500mm?1950mm stainless steel wire mould(1 pc),cylinder pressure forming machine(1 set),ø450mm?1950mm couch roll(1 pc),rubber HSD38º±2
2. Dryer part: ø1950mm?1950mm Dryer ( 1 pc ), ø500mm?1950mm carrier roller( 1 pc ), air-powered pressure device,rubber HSD 90º±2, there is double-layer air bood on the dryer.
3.Windingpart: ø1000mm?1950mm sweat cylinder (1pc),ø280mm?1950mm fly rubber roll( 1pc ).rubber HSD75º±2. winding on the sweat cylinder
4. Rewinding and cutting part: matching 1575 rewinding& perforating machine,toilet roll cutting machine.
5. Drive and control part: adopting AC frequency conversion speed, drive step by step.
|
|
